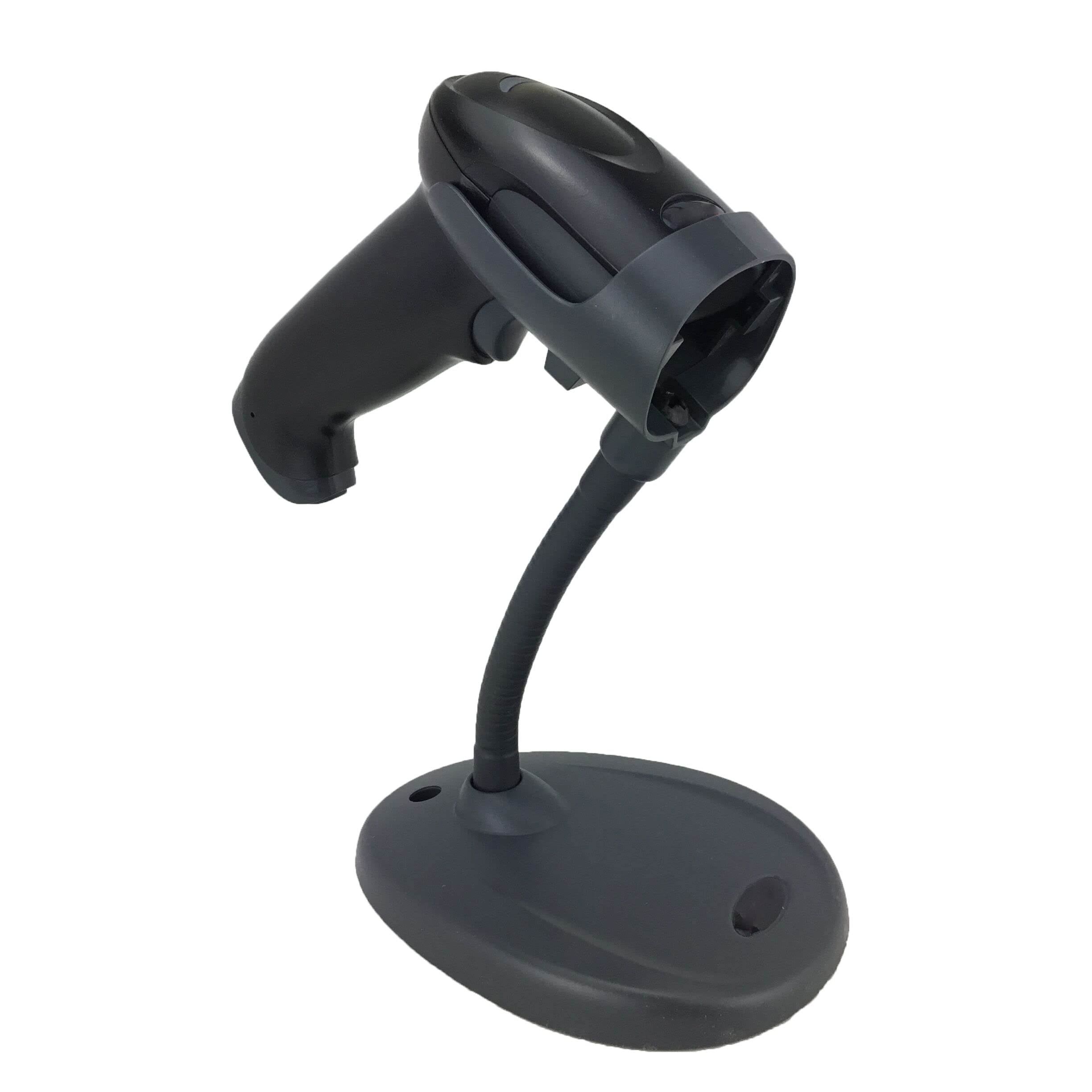

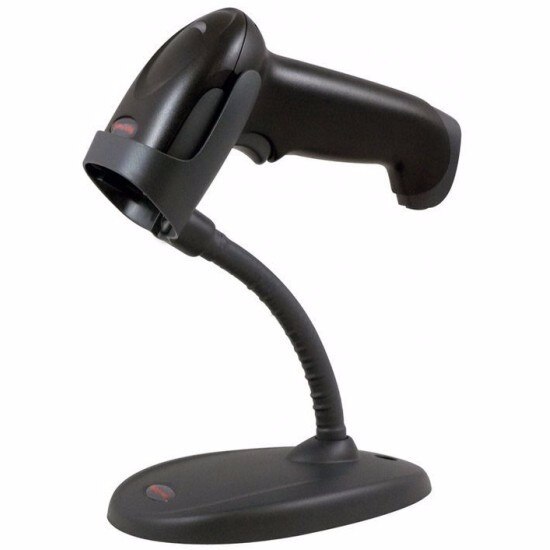

Honeywell Laser Barcode Scanner

Honeywell Laser Barcode Scanner

₹6,100.00 excl. GST ₹8,100.00

₹7,100.00 incl. GST ₹9,100.00

Availability:In stock

QUICK OVERVIEW

Honeywell Laser Barcode Scanner

DESCRIPTION

Operating indicators: Visual: 1 LED / large LED (red/green/orange) Non-visual: Buzzer Operating keys: Entry options: 1 scan key Communication: RS232: DB9 PTF connector with external power supply Keyboard Wedge: MiniDIN6 F/M connector USB: Ver. 1.1, HID/VCP, USB-A connector Power: Voltage requirement: 5V ± 10% (Keyboard Wedge and USB), 6V (min. 4.5, max. 6.5V) (RS232) Current consumption: Max. 200 mA Barcode scanner Optics: Light source: 650 nm visible laser diode Scan method: Bi-directional scanning Scan rate: 100 scans/sec Trigger mode: Manual, auto-trigger, stand detection Reading pitch angle: -35 to 0 ??, 0 to +35 ?? Reading skew angle: -50 to -8 ??, +8 to +50 ?? Reading tilt angle: -20 to 0 ??, 0 to +20 ?? Curvature: R>15 mm (EAN8), R>20 mm (EAN13) Min. resolution at PCS 0.9: 0.127 mm / 5 mil Min. PCS value: 0.35 Depth of field: At PCS 0.9, Code 39, 40 - 400 mm / 1.57 - 15.75 in (1.0 mm / 39 mil), 20 - 300 mm / 0.79 - 11.81 in (0.5 mm / 20 mil), 20 - 200 mm / 0.79 - 7.87 in (0.25 mm / 10 mil), 20 - 100 mm / 0.79 - 3.94 in (0.15 mm / 6 mil), 30 - 70 mm / 1.18 -2.76 in (0.127 mm / 5 mil) Supported Symbologies: Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Postal code: Chinese Post, Korean Postal Authority code 2D code: Composite codes, MicroPDF417, PDF417
